2 Channel vs. 4 Channel amp: Which is Better?

If you’re looking for improved music or sound quality, adding an amplifier to your music system can be beneficial. An amplifier is an electronic device that takes low voltage signals from your system and amplifies them to provide enough power to drive your speakers or subwoofers, resulting in better sound reproduction. Whether you enjoy soft or loud music, an amplifier can enhance the detail and excitement of a song, breathing new life into your music. However, to maximize the benefits of an amplifier, it’s important to choose the right one for your aftermarket speakers and subwoofers. If you’re considering a 2-channel vs. 4-channel amplifier for your stereo, here’s what you need to know about these two types of amps and how to make the right choice.

A 2-channel amplifier, as the name suggests, has two separate channels that can power two speakers or a single subwoofer with two separate voice coils. This type of amplifier is commonly used for stereo music systems, where two main speakers need to be powered. It can also be bridged to power a single subwoofer, providing increased power output to enhance low-frequency performance.

On the other hand, a 4-channel amplifier has four separate channels that can power four speakers or a combination of speakers and subwoofers. This type of amplifier is often used in car audio systems where additional speakers, such as rear speakers or component speakers, need to be powered along with the front speakers. It provides more flexibility in terms of speaker configuration and allows for better soundstage and imaging.

When choosing between a 2-channel and 4-channel amplifier, consider your specific audio setup and requirements. If you have a basic stereo system with two main speakers, a 2-channel amp may be sufficient. However, if you plan to expand your audio system in the future by adding rear speakers or subwoofers, a 4-channel amp can accommodate those additional components. It offers more flexibility and room for growth.

Additionally, consider the power requirements of your speakers and subwoofers. Ensure that the amplifier you choose can provide adequate power to drive your speakers effectively without straining or distorting the sound. Match the amplifier’s power output specifications to the recommended power handling capabilities of your speakers and subwoofers for optimal performance.

Ultimately, the choice between a 2-channel and 4-channel amplifier depends on your current and future audio system needs. Assess your setup, consider potential expansions, and select an amplifier that can provide sufficient power and flexibility to meet your requirements, enhancing your music listening experience.

What to Consider When Choosing an Amp

Not all amplifiers are the same. Amplifiers can vary in terms of the number of channels they have and the amount of power they provide. Each channel of an amplifier serves as a power source for one subwoofer or one speaker. The number of channels you need is primarily determined by the number of speakers in your system.

If you have a basic stereo system with two main speakers, a 2-channel amplifier would typically suffice. Each channel would power one speaker, providing stereo sound. In this case, you wouldn’t require additional channels for more speakers or subwoofers.

On the other hand, if you plan to have more speakers in your setup, such as rear speakers or additional speakers for a surround sound system, you would need a 4-channel amplifier or an amplifier with even more channels. Each channel would be dedicated to powering one speaker, allowing for a more comprehensive audio experience with multiple speakers.

The power requirements of your speakers also play a role in choosing the right amplifier. Different speakers have different power handling capabilities, and it’s essential to match the amplifier’s power output to the recommended power range of your speakers. This ensures that the amplifier can provide sufficient power to drive the speakers effectively without straining or distorting the sound.

2 Channel vs. 4 Channel amp

The Type

There are various types of car amplifiers: mono amplifiers, two-channel amplifiers, and multi-channel amplifiers. The choice of amplifier type depends on the subwoofers you have and the location of the speakers or subs you want to power. Mono car amps are specifically designed for low-frequency reproduction and often include features like low-pass filters and bass boosts. Class D mono amps are popular due to their efficiency, lower current draw, and reduced heat generation. Two-channel amps are suitable for component or full-range speaker systems and should have a high-pass filter when used. Five and six channel amps can power speakers located in the front or rear of a car. Multi-channel amps can be used to power both subwoofers and full-range speakers.

Power Ratings

When selecting an amplifier, it’s important to consider the power ratings. Amplifiers typically use two types of power ratings: peak power and Root Mean Square (RMS) power. RMS measures the continuous amount of power that an amplifier provides to your speakers. It is crucial to ensure that the power rating of your subwoofers and speakers matches or is within the range of the amplifier’s RMS power. If the amplifier’s RMS power is too high for your speakers, it can damage them. For example, if an amplifier provides 60 watts of power per channel, each channel can support a standard subwoofer.

However, if the subwoofer cannot handle 60 watts, it may distort the sound and potentially cause damage. The RMS capacity of your amplifier should match the highest RMS output rating of your speakers. For instance, a 50-watt speaker requires a channel with a 50-watt RMS capacity. If you require more volume in a larger car, you may need speakers with a higher RMS rating, such as 75 watts per speaker. Peak power is a higher rating than RMS power and indicates the amplifier’s capability for short and sudden increases in volume. Whether you choose a 2-channel or 4-channel amp, it is advisable to select one that can deliver power equal to twice the continuous power rating of your speakers. Additionally, it is important to test the amplifier and ensure it has the appropriate voltage for your system.

2 Channel Amp Vs. 4 Channel Amp: Which One Is Better?

Car stereo systems typically deliver around 10 watts RMS power per channel, which is relatively low. To achieve a more powerful and enjoyable music experience, it is recommended to upgrade the system by adding high-quality aftermarket speakers or subwoofers, along with a powerful amplifier to drive them. When selecting an amplifier, one of the key factors to consider is the number of channels it has. Many cars use either a 2-channel or a 4-channel amp. The difference between a 2-channel and a 4-channel amp lies in the number of channels they possess and the number of subwoofers or speakers they can be connected to. A 2-channel amp can connect to fewer subs and speakers compared to a 4-channel amp. Both types of amplifiers generally fall into the class A or B category and are suitable for powering tweeters and mid-bass speakers. To assist you in determining which amp is better suited for your needs, here’s what you should know about the differences between a 2-channel and a 4-channel amp.

2 Channel Amplifiers

2 Channel Amplifiers

A 2-channel amplifier is designed to provide output power to two separate channels, making it suitable for powering up to two speakers. In this setup, each speaker is connected to one channel of the amp. In certain cases, the channels can be bridged or combined to deliver more power to a single channel. This is commonly done when powering one or two subwoofers. However, for optimal sound quality, an active crossover system can be employed. With an active crossover, each speaker will have its own dedicated channel, bypassing the need for a passive crossover. Instead, each speaker channel will be connected to a DSP/EQ unit, allowing for precise power settings and crossover frequencies to be applied to each speaker.

When using a 2-channel amp with coaxial speakers, it is possible to combine the tweeter and mid-bass into a single speaker. The tweeter can be mounted in the center above the woofer cone. On the other hand, if you have component speakers, it is recommended to separate the tweeter and the woofer for better results. In this case, an external passive crossover network can be utilized. Despite separating the tweeter and woofer, the crossover ensures that only one channel is used to power both speakers, instead of using two separate channels. Component speaker systems also offer the flexibility to use a 2-channel amp to power up to four speakers by allocating each speaker its own channel.

4-Channel-Amplifier

4 Channel Amplifier

A 4-channel amp is capable of powering four subwoofers or speakers. When using this amp, you have the option to put it in bridge mode for the rear channels. This means that the two front channels will power the front components of the speaker system, while the rear channels will be bridged together to create a single powerful channel that drives the subwoofers. This configuration allows you to save space as you won’t need to install an additional amp to power your subs. However, it’s important to note that if you have larger subwoofers that require a significant amount of power, a 4-channel amp may not be able to fully meet their power needs.

You May Also Like  Top Car Amplifier with Good Bass | Reviews

A 4-channel amp can also be used to power up to eight speakers when wired correctly. In this setup, the amp delivers twice as much power when compared to running only four speakers. This configuration allows you to have more speakers throughout your car, providing a greater audio experience. If you prefer having front-to-rear fade control and enjoy rear-fill sound in your car, a 4-channel amp may be the best choice for you.

In summary, a 4-channel amp can power four subwoofers or speakers, with the option to bridge the rear channels for subwoofer use. It can save space by eliminating the need for an additional amp, and it can power up to eight speakers when wired correctly. Consider the power requirements of your subwoofers and the specific audio preferences you have when deciding on the ideal amp for your setup.

Differences Between 2 Channel Vs 4 Channel Amp



 2 channel vs 4 channel Amp

To achieve good sound quality and properly drive upgraded speakers or aftermarket subwoofers, it is necessary to have more power than what the factory stereo typically provides. This requires the use of a separate amplifier to deliver louder and deeper bass music. Generally, a car’s stereo system delivers around 10 watts RMS power output per channel, which is insufficient to overcome the ambient noise in a vehicle and create an immersive music experience. Therefore, upgrading the built-in radio system and adding a powerful amplifier, along with other necessary adjustments, is the best solution.

Once you have made the decision to add an amplifier, the next step is to determine whether a 2-channel or 4-channel amp is the right choice for your needs. Here is a comprehensive comparison between a 2-channel and 4-channel amp, covering everything from functionality to satisfaction.



Which one is to choose among a 2-channel and a 4-channel amplifier?

There are indeed differences between a 2-channel amp and a 4-channel amp, but it’s important to note that these differences are not related to the quality or capability of the amplifier itself. The distinction lies in the number of channels available for connecting speakers or subwoofers.

A 2-channel amp is designed to connect to a smaller number of speakers or subwoofers. With this type of amp, you can typically power up to two speakers or subwoofers, using one channel per speaker. In some cases, the channels can be bridged or combined to provide more power to a single channel, which is commonly done to power one or two subwoofers. However, it’s worth mentioning that for the best sound quality, an active crossover system is recommended, where each speaker has its own channel and a passive crossover is not utilized. This setup allows for precise power allocation and crossover frequencies.

On the other hand, a 4-channel amp can accommodate a larger number of speakers or subwoofers. It provides four channels for connecting and powering up to four speakers or subwoofers. In certain setups, the rear channels of a 4-channel amp can be bridged to create a single, more powerful channel to drive subwoofers, while the front channels power the front speakers. This configuration can be advantageous if you want to save space and avoid the need for an additional amp. However, it’s important to consider the power requirements of larger subwoofers, as a 4-channel amp may not be able to fully meet their power needs.

Features2-Channel Amp4-Channel Amp
Number of ChannelTwoFour
Workable forTwo speakers, one sub.Two sets of Speakers, one set of speakers with one subwoofer.

The choice of amp for your car’s music depends on the number of speakers or subwoofers you have installed. Each channel on the amp can be connected to one speaker or one subwoofer, acting as a separate power source for each aftermarket device.

If you prefer to focus on enhancing the music quality using only two high-output front speakers and don’t plan to use rear speakers, a 2-channel amplifier is perfect for your needs. It can pair with two speakers, providing dedicated power to each speaker.

However, if you want to incorporate both rear and front speakers in your car’s music system, you will need to install a 4-channel amplifier. This allows for two additional channels to be used for the rear speakers. In this setup, two channels can be used to pair with the front speakers, while the other two channels can be bridged to power a subwoofer. Alternatively, you can choose to have a 4-channel amp drive all four speakers and add a separate 2-channel or mono amp to power the subwoofer. This setup can create a powerful and immersive music experience, particularly favored by rock music enthusiasts.

How is RMS power associated with the numbers of channel of an amplifier?

Let’s consider an amplifier with 60 watts RMS power per channel. This means that each channel of the amp can effectively drive a large capacity speaker, allowing you to install it in your sports car, hatchback, or coupe and enjoy high-quality music that surpasses the noise of the road. It’s worth noting that if the power output is below 60 watts, the music may still sound good, but it may not be able to provide the level of volume required to overcome external noise.

The RMS power of the amplifier depends on the RMS output rating of the speakers. For example, a speaker with a 50 watts RMS output rating should be paired with an amplifier channel that has a capacity of 50 watts RMS output. In cases where you have a larger car or desire a more significant sound volume, each speaker should ideally have a minimum of 75 watts RMS power. In such cases, you would need to install an amplifier with channels capable of delivering 75 watts RMS power output per channel.

It’s important to note that a slight difference in RMS power, such as 5 or 10 watts, is unlikely to make a significant difference in sound quality. However, if you want an eye-popping volume in your music system, a speaker with a 100 watts RMS output should be paired with an amplifier channel that can deliver the same RMS power.

How to select the amp’s channel for a subwoofer?

The increasing popularity of subwoofer amplifiers in the aftermarket device market can be attributed to several factors. Here are some reasons why subwoofer amplifiers are gaining popularity:

  1. Enhanced Bass Performance: Subwoofers are designed to reproduce low-frequency sounds, providing deep and powerful bass. However, factory radio systems may not have sufficient power to drive subwoofers effectively. Adding a subwoofer amplifier allows for the amplification of the bass frequencies, resulting in improved bass performance and a more immersive audio experience.
  2. Accurate and Responsive Sound: Subwoofer amplifiers are specifically designed to handle the demanding requirements of subwoofers, ensuring accurate and responsive reproduction of low-frequency sounds. By providing dedicated power to the subwoofer, an amplifier can control the speaker cone more effectively, resulting in tighter and more controlled bass output.
  3. Flexibility and Compatibility: Subwoofer amplifiers come in various configurations, including mono/single-channel and multi-channel options. A mono amplifier is typically the ideal choice for powering a subwoofer since it focuses solely on amplifying the low-frequency signals. However, multi-channel amplifiers can also be used by bridging channels to power a subwoofer alongside other speakers. This versatility allows users to customize their audio systems based on their preferences and requirements.
  4. Overcoming Impedance Challenges: Subwoofers often have different impedance ratings, and mismatched impedance can lead to performance issues or even damage the equipment. Subwoofer amplifiers often have built-in features to handle impedance challenges, ensuring compatibility and preventing overheating in the subwoofer.

Overall, subwoofer amplifiers have become popular due to their ability to enhance bass performance, provide accurate and responsive sound reproduction, offer flexibility in system configuration, and address impedance challenges. These features make them a valuable addition to aftermarket audio setups, allowing users to achieve high-quality bass and optimize their overall audio experience.

About Wiring

Here is an example of some voice coil wiring configurations:

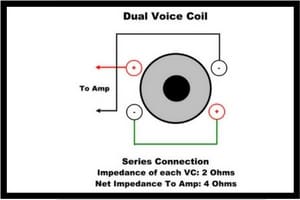

Dual voice coil series Connection

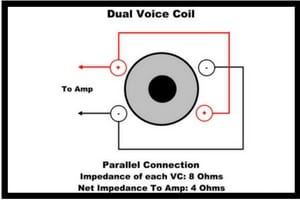

Dual voice coil parallel Connection

When it comes to wiring subwoofers, there are different configurations to consider, primarily involving series or parallel wiring. Additionally, subwoofers can have either a single voice coil (SVC) or dual voice coils (DVC), each with its own impedance rating (usually 2 ohms or 4 ohms). The wiring configuration chosen will determine the overall impedance presented to the amplifier.

Here are some key points to remember:

  1. Series Wiring: When connecting voice coils in series, you add the individual impedance values. For example, two 4-ohm SVC subwoofers wired in series would result in an 8-ohm load (4 ohms + 4 ohms). Series wiring is typically used when you want to increase the total impedance of the subwoofers.
  2. Parallel Wiring: When connecting voice coils in parallel, you divide the impedance value by the number of voice coils. For example, two 4-ohm SVC subwoofers wired in parallel would result in a 2-ohm load (4 ohms ÷ 2). Parallel wiring is commonly used to decrease the total impedance of the subwoofers.
  3. Dual Voice Coil Subwoofers: DVC subwoofers offer more wiring options since each voice coil can be connected independently. You can wire the voice coils in series, parallel, or a combination of both, providing more flexibility in achieving different impedance loads.

It is crucial to ensure that your amplifier is compatible with the impedance load presented to it. Not all amplifiers are designed to handle all impedance configurations. For example, if your amplifier is not 1-ohm stable and you wire your subwoofers to a 1-ohm load, it can overheat or even be damaged. Therefore, it’s important to check the specifications of your amplifier to ensure it can handle the impedance load created by the wiring configuration of your subwoofers.

By understanding the different wiring configurations and ensuring compatibility between the amplifier and subwoofer load, you can avoid potential issues and optimize the performance and safety of your audio system.

You May Also Like  Best Way To Connect A Subwoofer To An Old Amplifier

2-Channel Amplifiers

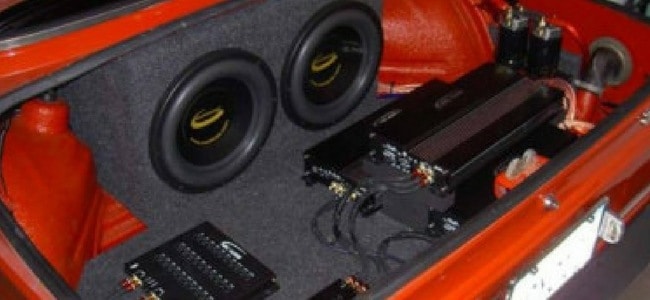

amplifier and speakers



When it comes to amplifiers with multiple channels, most 2 to 4 channel amps fall into the Class A/B category and are primarily designed for powering the front stage of your audio system, which includes mid-bass and tweeters.

There are two main types of speaker systems: coaxial speakers and component speakers.

  1. Coaxial Speakers: Coaxial speakers combine the mid-bass driver and tweeter into a single speaker unit. The tweeter is typically mounted in the center above the woofer cone. Coaxial speakers often have a small built-in crossover, usually in the form of a resistor. These speakers can be powered by a single channel on the amplifier, as the crossover within the speaker handles the division of frequencies between the mid-bass and tweeter.
  2. Component Speakers: Component speakers consist of separate mid-bass drivers and tweeters, offering better sound imaging and separation. They also come with an external passive crossover network. The passive crossover is responsible for splitting the frequencies between the mid-bass and tweeter, allowing them to be powered by a single amplifier channel. In a component speaker system, you would typically need two amplifier channels to power all four speakers (two mid-bass drivers and two tweeters).

For those seeking the best possible sound quality, an active crossover system can be utilized. In an active setup, each speaker has its own dedicated amplifier channel, and the passive crossovers are bypassed. Instead, the speaker channels are connected to a digital signal processor (DSP) or equalizer unit, which allows for precise control of crossover frequencies and power settings for each speaker. In this case, a component speaker set in an active system would require four channels for a two-way system and six channels for a three-way system.

However, it’s worth mentioning that some higher-end passive crossovers are bi-amp capable. This means that you can power each speaker (mid-bass and tweeter) with its own dedicated amplifier channel while still using the passive crossover. This setup eliminates the need for a dedicated DSP unit.

What About 5 Channels?

. 5-channel amplifiers provide a combination of amplification for different components of an audio system. Typically, the front and rear channels of a 5-channel amp are Class A/B, intended for powering mid-bass and tweeters. Meanwhile, the fifth channel is a dedicated Class D amplifier designed specifically for driving a subwoofer.

Using a 5-channel amplifier is a great option if you want to run four speakers (front and rear) while still having an additional channel for a subwoofer. It can be a space and cost-saving solution, as it consolidates multiple amplifiers into a single unit.

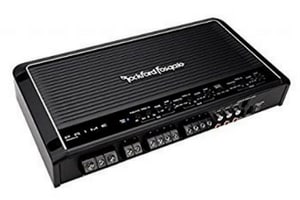

5 channel amplifier

However, it’s important to note that a 5-channel amplifier, like a 4-channel amp in bridged mode, may not provide sufficient power for larger subwoofers. In such cases, it is often recommended to use a separate amplifier specifically designed for the subwoofer to ensure adequate power delivery.

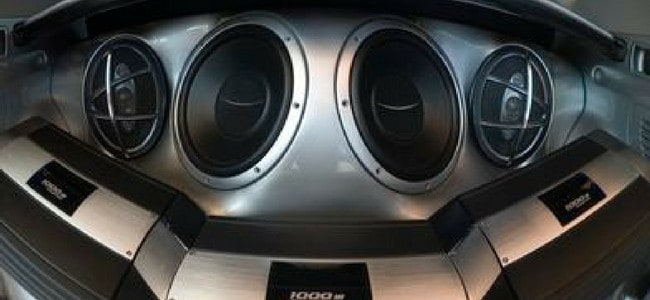

separate amplifier

For those seeking even greater control and precision in sound reproduction, active crossover systems are commonly used. These systems utilize separate amplifiers for tweeters, mid-bass drivers, and subwoofers. This approach allows for a more accurate distribution of power to each type of speaker, resulting in optimal performance and sound quality.

Choosing the right amplifier configuration can indeed be confusing, considering the various options available. Cost is typically a significant factor in decision-making, but it’s also essential to consider how much space you’re willing to allocate for audio equipment in your vehicle. Evaluating your budget and available space will help you determine the best amplifier setup for your specific needs and preferences.

Monoblock Amps



Advancements in Class D amplifier technology and the miniaturization of amplifier components have allowed for higher power outputs in smaller form factors. This has made it possible to obtain substantial amounts of power from compact amplifiers.

One example is the JL Audio HD1200/1, which delivers 1200 watts of power while being roughly the size of a standard sheet of notebook paper (8.5 x 11 inches). Another example is the Alpine MRV-M1200, which provides up to 600 watts at 4 ohms and 1200 watts at 2 ohms, comparable in size to the JL Audio HD1200/1. These compact amplifier options demonstrate that size is less of a limitation than it used to be, allowing for greater flexibility in installations, particularly when considering subwoofers and their enclosures.



Jl audio Hd 1200/1

In addition to size considerations, the number of speakers you plan to run should also play a role in selecting an amplifier. It’s important to match the amplifier’s channel configuration with your speaker setup. For example, if you have a 4-channel speaker system, you’ll want an amplifier with at least 4 channels to power each speaker individually.

Furthermore, it’s crucial to consider the power requirements of the amplifier and ensure that your vehicle’s electrical system can supply enough power to meet its demands. Some amplifiers may draw more power and be less efficient than others, which can strain the electrical system if not properly accounted for.



alpine mrv m-1200

Taking into account both the power needs of your speakers and the power requirements of the amplifier, as well as the efficiency of the amplifier, will help you design a well-balanced car audio system that delivers optimal performance without taxing your vehicle’s electrical system.

In summary, while size is less of a limitation for amplifiers due to technological advancements, it is still important to consider enclosure space and power requirements. By carefully considering your speaker setup, amplifier capabilities, and power supply, you can create a car audio system that meets your power needs while delivering excellent sound quality.

How to power all this

Amplifiers in car audio systems are powered by the vehicle’s alternator. The output capacity of the alternator is an essential factor in determining the power capabilities of the audio system.

If the alternator in your vehicle does not provide sufficient amperage to meet the power demands of the amplifier, you may need to upgrade to a high-output alternator. A high-output alternator can generate more electrical current and ensure that the amplifier receives the necessary power without straining the vehicle’s electrical system.

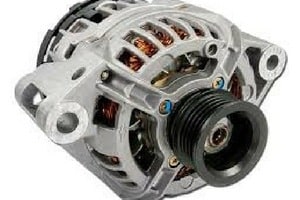

altenator

In addition to upgrading the alternator, adding or upgrading batteries can also help support the power needs of the audio system. However, it’s important to note that even with additional batteries, if the alternator’s amperage is not sufficient to charge those batteries adequately, they won’t be able to provide enough power to the amplifier.

The power output of the stock alternators in most vehicles is generally suitable for powering audio systems up to around 800 to 1000 watts, depending on the specific amperage rating of the alternator.

To ensure the proper functioning and performance of the audio system, it’s crucial to consider the alternator’s amperage output, the power requirements of the amplifier, and the overall electrical capacity of the vehicle. If the power demands exceed the capabilities of the stock electrical system, upgrading the alternator and potentially adding supplemental batteries can help meet the increased power needs.

Ultimately, optimizing the power supply in the vehicle is essential to ensure that the audio system operates efficiently and reliably without draining the vehicle’s electrical resources.

Frequently Asked Questions (FAQs):

How to set a 4-channel amplifier to a 2-channel head unit?

To set a 4-channel amplifier to a 2-channel head unit, you can use a Y adapter. Here’s how you can do it:

  • Obtain an RCA Y adapter cable. This cable has one male RCA connector on one end and two female RCA connectors on the other end.
  • Connect the male end of the Y adapter to the RCA output jacks of your 2-channel head unit. These jacks are usually labeled as “Front” or “Main” outputs.
  • Connect one of the female ends of the Y adapter to the RCA inputs of the front channel inputs on your 4-channel amplifier. These inputs are typically labeled as “Front” or “Front/Rear.”
  • Connect the other female end of the Y adapter to the RCA inputs of the rear channel inputs on your 4-channel amplifier. These inputs are usually labeled as “Rear” or “Rear/Surround.”

By using the Y adapter, you are splitting the stereo signal from the 2-channel head unit into two identical signals, allowing you to connect it to the front and rear inputs of the 4-channel amplifier.

Keep in mind that when using this configuration, the front and rear channels of the amplifier will receive the same signal from the head unit. Therefore, ensure that the settings on the amplifier, such as gain and crossover settings, are adjusted accordingly to ensure balanced and optimal sound reproduction.

It’s worth noting that this method is a basic way to connect a 4-channel amplifier to a 2-channel head unit. For more advanced setups, such as utilizing active crossovers or separate amplification for different speakers, additional components and adjustments may be necessary.

Final verdict:

Both 2-channel and 4-channel amplifiers require a compatible RMS range and impedance level with the speakers or subs they are connected to. It’s essential to consider these factors when selecting an amplifier for your car audio system.

Before installing an amplifier, it’s crucial to assess your specific requirements and preferences for your music system. The number of channels you choose depends on the number of subwoofers and speakers you have, as well as their wattage. Each channel on the amplifier provides power to a separate aftermarket device.

If you have two high-output front speakers, a 2-channel amp can be a suitable choice. This configuration allows you to dedicate one channel to each speaker. However, if you have an additional pair of speakers in the rear of your car, you will need two extra channels to power them. In this case, a 4-channel amp would be more suitable. It enables you to use both the front and rear speakers, as well as any connected subs, to achieve good sound quality and balance in your car audio system.

Ultimately, the decision between a 2-channel and 4-channel amp depends on the specific setup and requirements of your car audio system. If you want a powerful and dynamic sound experience, particularly for genres like rock music, you can consider installing both a 2-channel and 4-channel amp. This setup allows for separate amplification of different speakers and subs, enhancing the overall audio performance in your car.

Remember to consider factors like power requirements, impedance compatibility, and the specific configuration of your speakers and subs when choosing the appropriate amplifier setup.
