How to Splice RCA Cable to Speaker Wire? [Easy Step by Step]
On occasion, audio enthusiasts face the challenge of linking RCA cables to speaker wires. Despite the advantages that stem from amplifying sounds through an amplifier connection, caution is paramount as incorrect wiring could harm your sound system. If you own a stereo with RCA outputs and speaker sets available in pairs, it’s imperative to acquire proper hookups for speaker wire connections since most speakers don’t have automatic compatibility with RCA cords. By splicing these wires cautiously into place within your setup unit or entertainment center housing various devices – whether music players, movies projectors or gaming systems –you can experience optimal listening enjoyment without any disruption or impairment issues cropping up along the way!
Properly splicing RCA cables to speaker wire is an essential skill. To learn how to splice RCA cables with speaker wires, read this blog post for a complete guide on the process.
Please continue reading!
What are the functions of RCB cable and Speaker Wire?
To convey music from the source to a speaker, it is essential to have both RCA cables and speaker wires. Each of these basic constituents serves its own purpose – signal transmission for the former whereas direct connection between audio sources and speakers for the latter. It becomes pivotal to comprehend their individual roles in order to establish an uninterrupted, immersive acoustic ambiance.
Let’s begin by comprehending them.

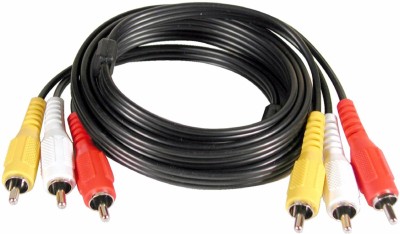

Cable RCA:
When it comes to audio and video transmission, RCA (Radio Corporation of America) cables are an indispensable component. Originating from the company that pioneered them in the 1940s, they have since become a widespread method for linking audio and visual equipment together across various industries. Typically featuring color-coded connectors – with red and white assigned for auditory purposes while yellow is allocated for composite video use – these cables remain ubiquitous even today.
Audio-visual devices, home entertainment systems and audio equipment make use of these components for transferring analogue signals between various equipments. The significance of their role is evident in the setup configuration process of gaming consoles, home theatres as well as other sound related frameworks.

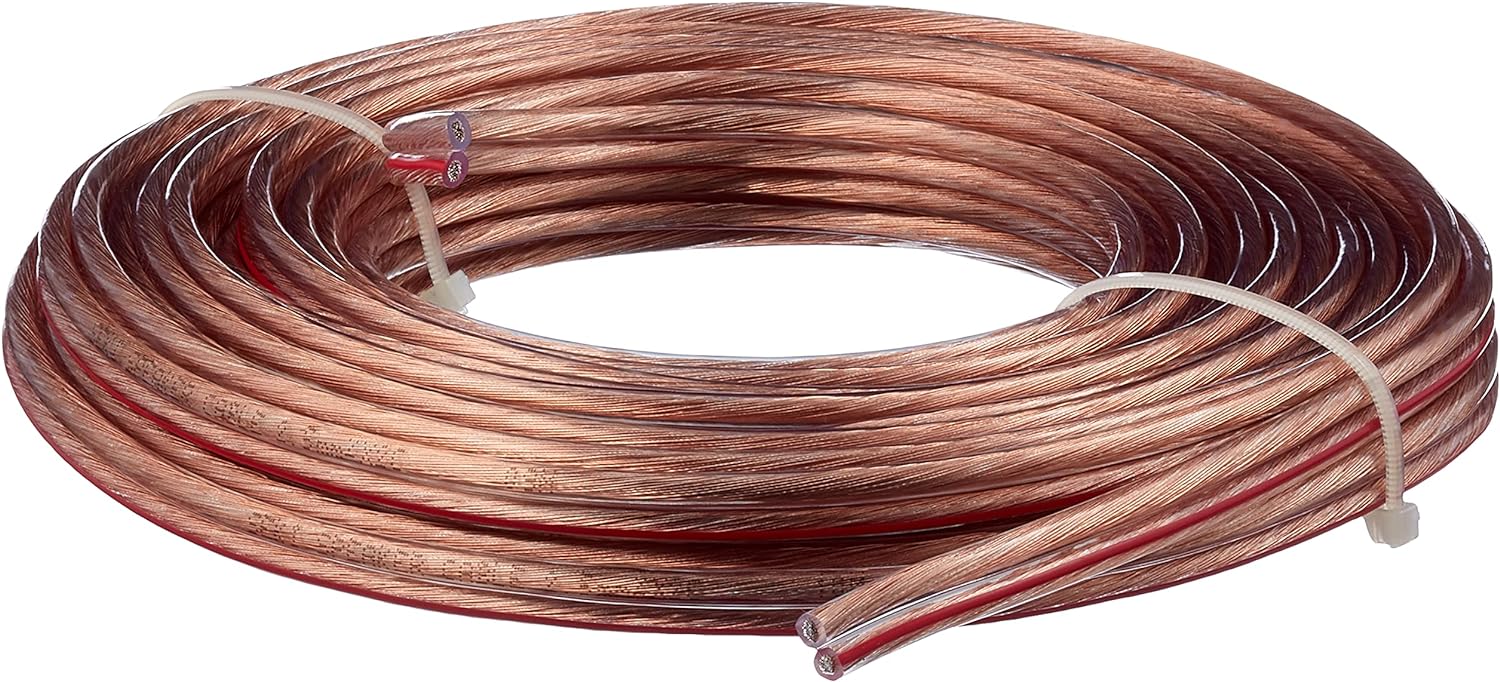

Wire for speakers:
Speaker wire is a basic type of wiring utilized for connecting audio devices to speakers. Unlike RCA cables, this uncomplicated form of cable consists of two insulated wires that are often color-coded and join the speaker system with sound sources. Its principal role involves transmitting electrical impulses efficiently while preserving clear and accurate sound quality from the amplifier to the speakers.
In order to meet the needs of different audio systems, speaker wire comes in a variety of gauges and lengths. It plays an indispensable role in achieving superior sound quality for any type of system – be it as simple as a basic stereo or as elaborate as an expansive home theater setup.
What is the Procedure for Splicing Speaker Wire to RCA Cable?
For audio enthusiasts who want to connect multiple audio components, splicing RCA cables with speaker wire is a must. The following steps can guide you on how to integrate old equipment into your modern setup or personalize your sound system.
To attain a dependable and sturdy wiring connection, certain techniques must be followed along with the use of imperative materials.
Required Items to Splice RCA Cable to Speaker Wire.
- RCA cable: Choose an RCA cable with the appropriate length and quality for your audio setup.
- Speaker wires: Select the correct gauge and length of speaker wire for your speakers.
- Strippers for wires: These tools are necessary for removing wire insulation and exposing the copper conductors.
- Cutters for wire: This is useful for trimming wires to the proper lengths.
- Optional soldering iron and solder: Soldering is advised for a more secure and long-lasting connection.
- Heat-shrinkable tubing: This adds insulation and protection to the splice.
- Electrical tape: This is useful for wrapping and securing a connection.
- Wire Connectors (if not soldering): Wire connectors can be used to fasten the wires instead of soldering.
So now, since you know the required material you need, it’s time to explore the steps for it!
Step by Step Guide to Splice RCA Cable to Speaker Wire.
Step 1: Gather all the material as listed above.
Step 2: Prepare the Cables
- Cut the RCA cable to the desired length, considering the distance between your audio source and the speakers.
- Remove the RCA cable’s outer insulation to reveal the inner wires.
- Strip the speaker wire ends to reveal the bare copper.
Step 3: Recognize the RCA Cable Wires
- Two inner wires are inside the RCA cable: one with a white insulator (left channel) and one with a red insulator (right channel).
Step 4: Connect the Wires
- Connect the positive terminal of the speaker wire (typically marked with a + sign or a red stripe) to the positive terminal of the red RCA cable wire.
- Connect the speaker wire’s negative terminal to the white RCA cable wire.
Step 5: Protect the Connection
- Apply heat to create a secure connection between the wires using a soldering iron and solder. This step improves audio quality and longevity.
- If you are uncomfortable soldering, use wire connectors to secure the wires.
Step 6: Insulate the Connection
- Slide heat shrink tubing over the soldered or connected wires.
- Shrink the tubing with a heat gun or lighter to provide insulation and extra protection.
Step 7: Apply Electrical Tape
- Wrap electrical tape around the connector to protect it from moisture and physical harm.
Step 8: Do the same for the other channel (if applicable).
- If you’re splicing a stereo RCA cable, repeat the process for the second channel. Make sure that both the left and right channels are correctly linked.
You can effectively splice RCA cables to speaker wire by following these instructions and utilizing the proper materials, allowing you to experience better audio connectivity and expand the capabilities of your audio system. This expertise will help attain the correct audio output, establish a home theater, set up a stereo system, or connect audio equipment for a specific purpose.
Conclusion:
Splicing RCA cables to speaker wire is a valuable skill that enhances the capabilities of your audio setup and allows for versatile device connections. By following the detailed steps outlined above and using the appropriate tools, you can achieve a clean and secure splice, ultimately improving your overall audio experience. Whether you’re building a home theater system or enhancing a stereo setup, understanding how to splice RCA cables to speaker wire is essential for any audio enthusiast.
F.A.Q
Q1. Is it possible to convert an RCA cable to speaker wire?
Yes, it is possible, but it’s not recommended as the gauge of the wire in an RCA cable may not be suitable for speaker cable use, leading to potential issues with resistance and impacting audio quality.
Q2. Is RCA superior to speaker wire?
RCA and speaker wires serve different purposes. For modest speakers, the cable attached to RCA connections may suffice. However, for larger speakers, thicker speaker wire is often necessary. RCA handles line-level signals, while speaker wires carry amplified signals.
Q3. How do you splice and extend the speaker wire?
To splice and extend speaker wires, align the wires facing the same way, attach wire caps, and twist them clockwise to secure the connection. Use electrical tape to further secure the wires and caps, ensuring a reliable and insulated splice.
